Triumph Subsea Services, LoI ved Kleven Verft, ST 269 2+2 "TBN"

Refvik

Administrator
Staff member
FDV NEW BUILDS

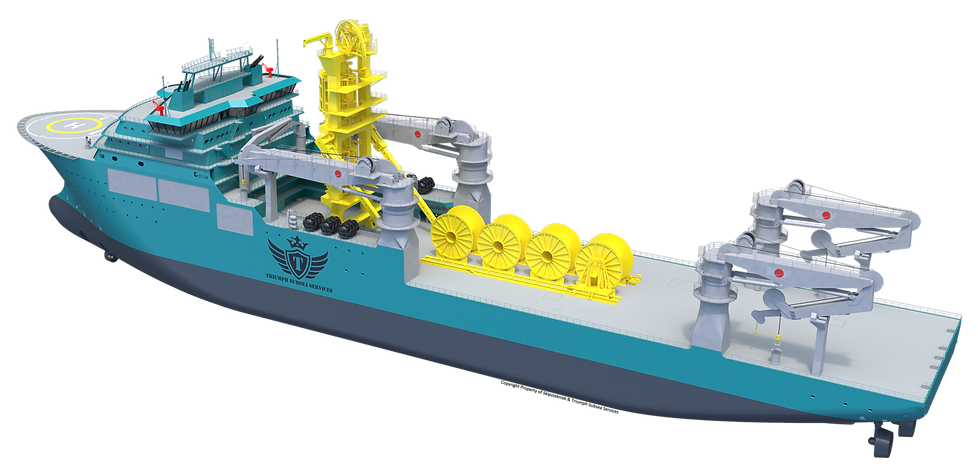

Triumph FDV ST-269


Triumph’s new-build Field Development Vessels (FDVs) have been designed to meet and exceed the emerging green and blue economy requirements. The requirement to meet these obligations and to improve the carbon footprint of the offshore, marine and renewables industries is paramount in the considerations of the vessels design and in Triumph’s operations as an organisation. The parameters for the Skipsteknisk designed FDVs was to design and build vessels that are truly multi-purpose for nearly all subsea construction tasks that can be encountered within the offshore oil / gas, subsea telecoms, decommissioning and renewables markets. Further to the standard equipment fitted to the vessels they are multi role and adaptable wherein modular pipe-lay systems for both shallow and deep water can be installed in either S Lay or J Lay configurations.

The vessels have been designed to conform to the highest levels of class notation in regard to Clean Design, Environmental Design and SPS Code, where a focus is placed on low fuel consumption, reduced exhaust emissions, environmental protection systems and safety. The vessels are diesel electric with hybrid battery systems and advanced energy recovery systems that greatly enhance the fuel consumption figures for the vessels and reduce greenhouse gas emissions.

Enhanced crew safety feature include the MARSS MOBtronic automated man overboard detection / tracking system and MARRS NiDAR autonomous threat detection, surveillance and anti-piracy countermeasures system.

Cranes and VLS are operated via 3 on-board remote operations rooms and also have the capability of “over the horizon” remote operations. Cranes have below deck electric winches fitted with 4000m + of fibre rope and the fibre rope is full load capable to full depth, the only limitation is the amount of rope fitted.

■ Class
DNV GL ✠1A, EO, SF, DYNPOS(AUTRO), SPS, Clean (Design, Tier III), ECA (SOx-A), Recyclable, NAUT(OSV), BIS, BWM(T), COMF(V-2,C-2), HELDK(S,H), ICE(1C), POLAR(C), Battery(Power), Strengthened(DK, HA), Fire Fighter II, LFL (2), Shore Power, Crane, Quiet I(x,x,x,40), VIBR, EP-D, Silent (E)

■ Length O.A.
200.20m

■ Beam
35.00m

■ Accommodation
240 personnel
Dedicated Client wing inclusive of offices and suites
Dedicated Management wing inclusive of offices and suites

■ Endurance
60 days @ 16knots
180 + days infield on DP (based on fuel and lubes)

■ Fuel Consumption
Super Economical 9.5knots @ 23 MT per 24hours
Economical 14knots @ 36 MT per 24hours
DP @ 20 MT per 24hours

■ Deck Equipment
  • 2 x 600tonne Telescopic AHC Cranes
  • 600tonne @ 4000m fibre rope
  • Man-riding rated whipline
  • 2 x 200tonne Knuckle-Boom AHC Cranes
  • 200tonne @ 4000m fibre rope
■ Man-riding rated whipline
  • 600tonne Vertical Lay System
  • 2 x 300tonne tensioners – dynamic load
  • 600tonne and 200tonne A&R capability to 4000m
  • 200tonne Skidding System
■ Carousels
2 x 25m diameter below deck carousels each with 4500tonne capacity

■ WROVS
2 x Moon-pool deployed WROVS

Kilde: Triumph Subsea Services


Refvik

Administrator
Staff member
Allerede neste veke blir det kanskje skreve under Intensjonsavtale med et verft på bygging av denne...


Refvik

Administrator
Staff member
Utdrag fra artikkelen:

Kleven-direktør Kjetil Bollestad stadfestar at den kroatiske Kleven-eigaren DIV Group har skrive intensjonsavtale med selskapet Triumph Subsea Services om bygging av inntil fire 200 meter lange spesialskip for utvikling av vindkraftfelt.

- No vert det jobba vidare med konseptutvikling og endeleg kontraktsinngåing, seier Bollestad.

Dei Skipsteknisk-designa skipa er 200,2 meter lange og 35,0 meter breie. Kvart skip skal innreiast for 240 personar, og er fullspekka med avansert utstyr.

Etter det NETT NO har grunn til å tru ligg prisen per skip på i overkant av tre milliardar kroner, men endeleg finansiering skal enno ikkje vere på plass for Triumph Subsea Services.

Partane er uansett komne så langt at Triumph opplyser at planen er å starte stålarbeidet ved Brodosplit på det første skipet i mars-april neste år, og deretter på skip nummer to seks månader seinare.

Intensjonsavtalen gjeld to skip, med opsjon på ytterlegare to skip.

Kjetil Bollestad seier at skroget på første skipet er venta til Kleven våren 2022, om alt no går etter planen.
